Cessna 172M (1976) "Skyhawk II" panel drawing DXF
Product Code: C172M1976pnl
Rating: Be the first to write a review
Brand: SPLaser.ca downloadable-drawings
Product Condition: New
Updated Jan. 7 2026.
Looking to upgrade your 1976 Cessna 172M panel or create a realistic flight simulator experience? Our (1976) Cessna 172M panel drawing DXF is the perfect solution for aviation enthusiasts and pilots alike. This CAD drawing provides you with the opportunity to make your own replacement or flight simulator panel, giving you full control over the customization process.

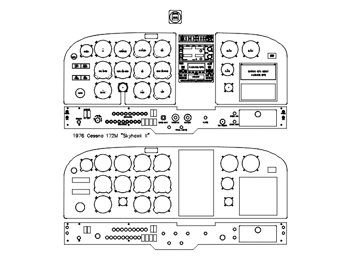

The panel drawing has the 1976 "Skyhawk II" panel which includes updated cutout drawings for the 2 1/4" and 3 1/8" "steam gauge" openings, relocated fuel guages, and switch type flap paddle.
The drawing is in DXF format, compatible with any commercially available CAD drawing program that can import a DXF format file. Additionally, we provide a full-size JPG or PNG file that can be printed out and used as a mounting or drilling template, whether you choose to build your panel from sheet stock aluminum, carbon fiber, or any other material.
Upon purchase, the panel file will be sent to the email address provided with your order. Should you wish to modify the panel to suit your specific requirements, our team is readily available to collaborate with you and create a custom panel tailored to your needs.
It's important to note that no refunds can be given on digital files, but we are committed to working with you to modify purchased files to your requirements after you receive them. Once the file has been downloaded or emailed, it becomes the property of the purchaser, and each file is digitally marked to ensure authenticity and ownership.
