PA28 180 1966 1 piece "upgrade" panel

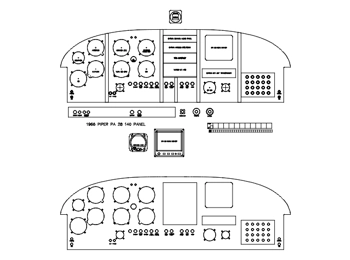

CAD drawing for a 1966 Piper Cherokee 180 panel upgrade.*
Make your own replacement panel. Includes cutout drawings for all 2 1/4" and 3 1/8" "steam gauge" openings, as well as MVP 50 engine monitor and AV 30 display.
Panel drawing is in DXF format to be used with any commercially available CAD drawing program that can import a DXF format file.

Also included is a full size JPG or PNG file that can be printed out and used as a mounting or drilling template if you want to build your panel from sheet stock aluminum, carbon fibre, or other material.

Panel file will be sent to the email address provided on you order.

If you want to modify any panel to suit your specific requirements, please contact us and we would be happy to work with you to create a custom panel.

*A special thank-you to Shawn G. for his help with this panel design.

We are sorry, but no refunds can be given on digital files.
We are however happy to work with you to modify purchased files to your requirements after you receive them.
Once the file has been downloaded or emailed it becomes the property of the purchaser. Each file is digitally marked to the original purchaser.
