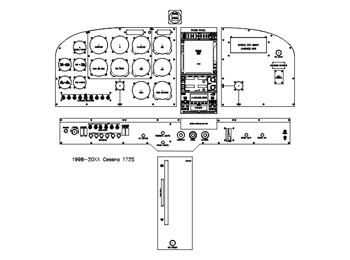

Cessna 172S panel drawing DXF
Product Code: CESS172SPan
Rating: Be the first to write a review
Brand: SPLaser.ca downloadable-drawings
Product Condition: New
Cessna 172S Panel Drawing DXF
UPDATED Dec. 23 2025. (More detail and adjusted some measurements)
Are you an aviation shop or a simulator builder looking to create the perfect new panel for the iconic Cessna 172S? Look no further! Our C172S panel drawing is just what you need to bring your project to life. This detailed drawing captures every nuance of the Cessna 172S panel, making it an essential resource for anyone interested in aircraft design or restoration.
With our DXF file, you can easily import the drawing into your favorite CAD software, allowing you to customize and modify the panel to suit your specific needs. Whether you're crafting a new carbon panel, designing a simulator, or simply looking to understand the layout of the cockpit, this drawing provides a clear and accurate representation of the Cessna 172S panel.
Our panels are meticulously designed to ensure that every gauge, switch, and control is represented with precision. You'll appreciate the attention to detail that has gone into creating this drawing, making it a valuable addition to your collection. Plus, the DXF format ensures compatibility with a wide range of design software, making it easy to work with.
Don't miss out on the opportunity to own this fantastic resource. Whether you're a hobbyist, a professional, or just someone who loves aviation, the Cessna 172S panel drawing DXF is a must-have. Get your hands on this drawing today and take your project to new heights!
Includes cutout drawings for all 2 1/4" and 3 1/8" "steam gauge" openings.
Panel drawing is in DXF format to be used with any commercially available CAD drawing program that can import a DXF format file.
Also included is a full size JPG or PNG file that can be printed out and used as a mounting or drilling template if you want to build your panel from sheet stock aluminum, carbon fibre, or other material.
Panel file will be sent to the email address provided on you order.
If you want to modify any panel to suit your specific requirements, please contact us and we would be happy to work with you to create a custom panel.
We are sorry, but no refunds can be given on digital files.
We are however happy to work with you to modify purchased files to your requirements after you receive them.
Once the file has been downloaded or emailed it becomes the property of the purchaser. Each file is digitally marked to the original purchaser.
Customer Reviews
(write review)Unfortunately This DXF file is not quite the same scale as in a Cessna 172S! Regards, Dave
"Unfortunately this 172 DXF file is not quite the scale as in a C172S! Regards, Dave" David Nunn - Monday, September 2, 2024
"Thank you for the feedback. While we try to get as close as possible with our drawings, they are somewhat generic. There are always going to be differences from one aircraft to another. We will always work with our customers to modify drawings to their specific needs and get them a drawing that will work for them." SP Laser - Owner
