Garmin G5 Cut Out Drawing

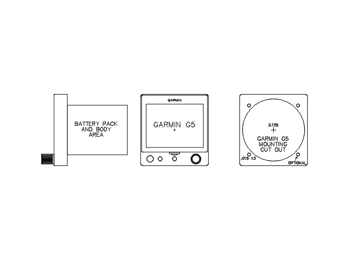

Introducing the Garmin G5 cut out drawing, a must-have for amature aviation panel builders and professionals alike! This detailed illustration gives all the required measurements of the Garmin G5, so you can perfectly mount this revolutionary instrument that has transformed the way pilots interact with their aircraft. Whether you're a seasoned pilot or just starting your journey in aviation, this cut out drawing is perfect for making sure you get the best placement and use of your new G5 display/s.

Drawn with CAD precision to the thousandth of an inch, the Garmin G5 cut out drawing highlights every essential cut out, mounting hole and overall space required for the bezel and display screen. This drawing also serves as an excellent starting point to familiarize yourself with the instrument's size width and depth before you cut any material for a new panel.

When this cut out drawing is printed on high-quality paper, you will ensure that every detail is crisp and clear,  much better than a photo copy or hand drawn outline.
